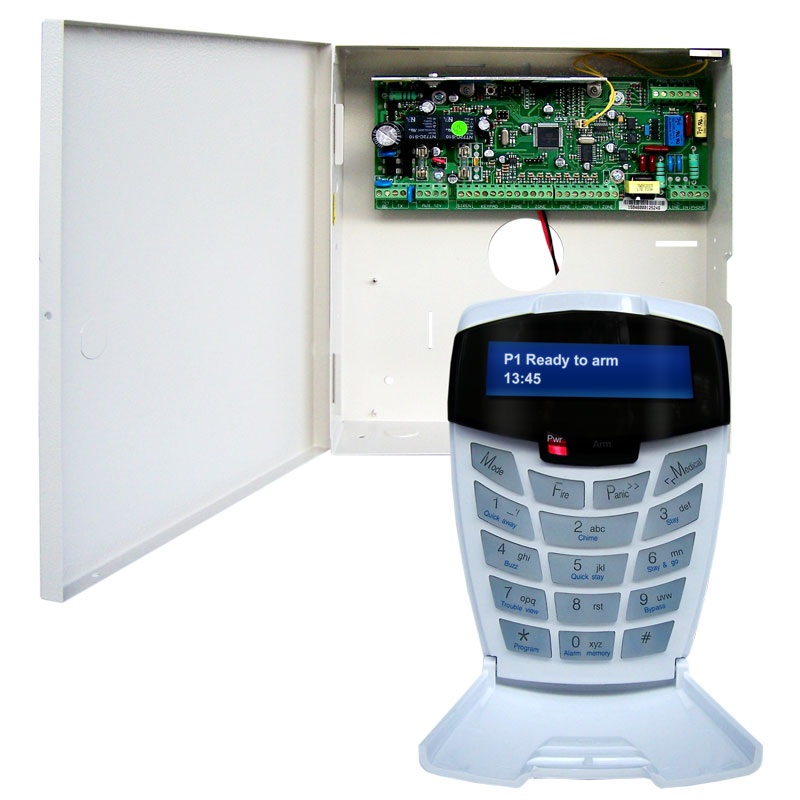

If you're looking to install a new alarm system in your home or office, the WGAP816 may be just what you're looking for. It is a versatile, microprocessor-based, fully featured 8/16 Zone alarm panel. The system includes an LCD keypad, which allows you to easily program and operate the alarm system. You can expand the system with our range of hardwired alarm accessories, which includes PIRs, Reed Switches, Smoke Detectors and more.

If you're looking to install a new alarm system in your home or office, the WGAP816 may be just what you're looking for. It is a versatile, microprocessor-based, fully featured 8/16 Zone alarm panel. The system includes an LCD keypad, which allows you to easily program and operate the alarm system. You can expand the system with our range of hardwired alarm accessories, which includes PIRs, Reed Switches, Smoke Detectors and more.

Product Features

• 8 programmable end-of-line supervised zone inputs or 16 zone with zone doubling features
• 2 Partitions, 32 user codes, 500 event log
• Five programmable outputs on alarm panel. Expandable to seven when using Wired Zone Expander module
• Programmable loop response time
• Auto arm/disarm capability per partition and by day of the week. The panel can be programmed to arm/disarm at a pre-determined time
• Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
• Fully programmable digital telephone communicator that supports most industry standard formats.
• Non volatile EEPROM memory retains all program and event log data in the event of a total power failure
• Excellent protection against lighting (provided by specialist “zap tracking” and transient suppressors)
• Fax defeat/answering machine override
• Dual reporting provides for duplicated reporting to two independent central base stations
• 3 quick arm modes
• Away
• Stay with no exit delay
• Stay with exit delay
• Dynamic battery self test
• Low battery cut out circuit
• False alarm reduction features
