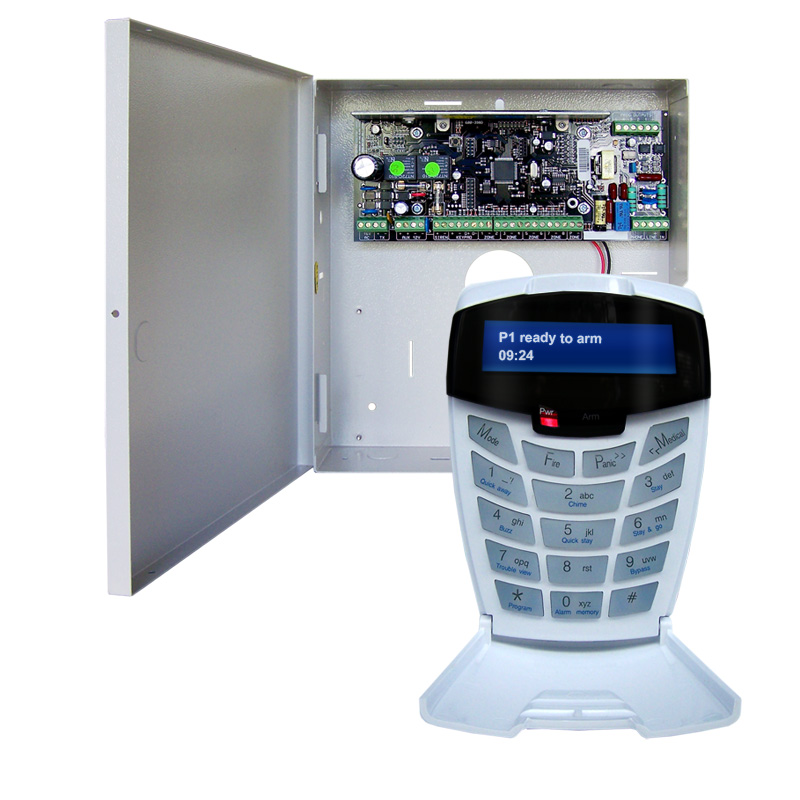

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones

Model: WGAP864

The WGAP864 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has two partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to seven) program able outputs that may be programed to perform various trigger/switching functions.

The WGAP864 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has two partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to seven) program able outputs that may be programed to perform various trigger/switching functions.

PRODUCT FEATURES • 64 zones (up to 16 onboard) • 8 partitions • Supports up to 8 keypads • 128 user codes • 25 fully programmable outputs • Ability to log up to 1000 events • 1.5A available onboard power (dual power supply) • Dedicated 500mA battery charger for optimal backup battery management • Up to 4 bus receivers (fully programmable from the keypad) • IDS’s renowned one-button arming • 3 quick arm modes: Stay, (2) Away and (3) Stay and Go • 4 stay profiles (quick-select specific stay profiles via keypad shortcut): Stay, Night Stay, Day Stay, Perimeter • Supports star or daisy chain modules up to 300m • Dual and split reporting • Dynamic battery self-test • Dedicated panic zone • Optional tamper per zone • Separate box tamper zone • Maintenance code • No activity arming • Recall bypass selected • Auto arm/disarm per partition • User-enabled chime and buzz zones • Programmable loop response time • Excellent protection against lightning (provided by “zap tracking” and transient suppressors) • Telephone communicator • Expanded heat sink

WGAP864 Installation Manual (PDF) WGAP864 Installation Manual (PDF)

WGAP864 User Manual (PDF) WGAP864 User Manual (PDF)

WGAP864 Product Brochure (PDF) WGAP864 Product Brochure (PDF)
